SIGMA

Intensity and ground motion analysis

Overview

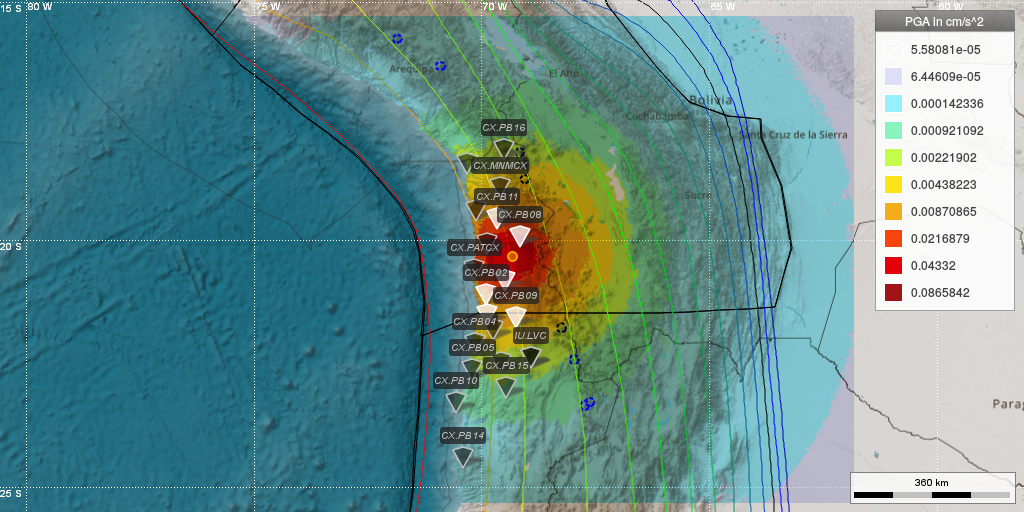

Map in SIGMA showing PGA

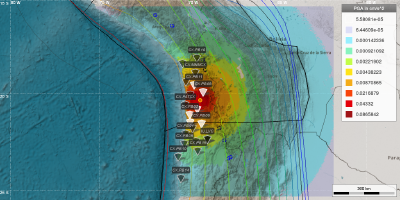

Map in SIGMA showing PGA

Ground motion parameters

SIGMA and AUTOSIGMA compute and visualize strong ground motion parameters for earthquakes. The calculated parameters can be stored as incidents in a database and used to create customized reports. While AUTOSIGMA computes the strong motion parameters automatically based on a static configuration, SIGMA provides a highly flexible user-interaction through a modern and user-friendly graphical user interface (GUI).

Ground motion parameters

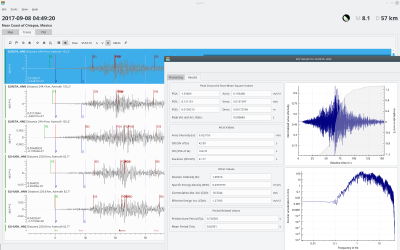

Ground motion parameters by interactive analysis

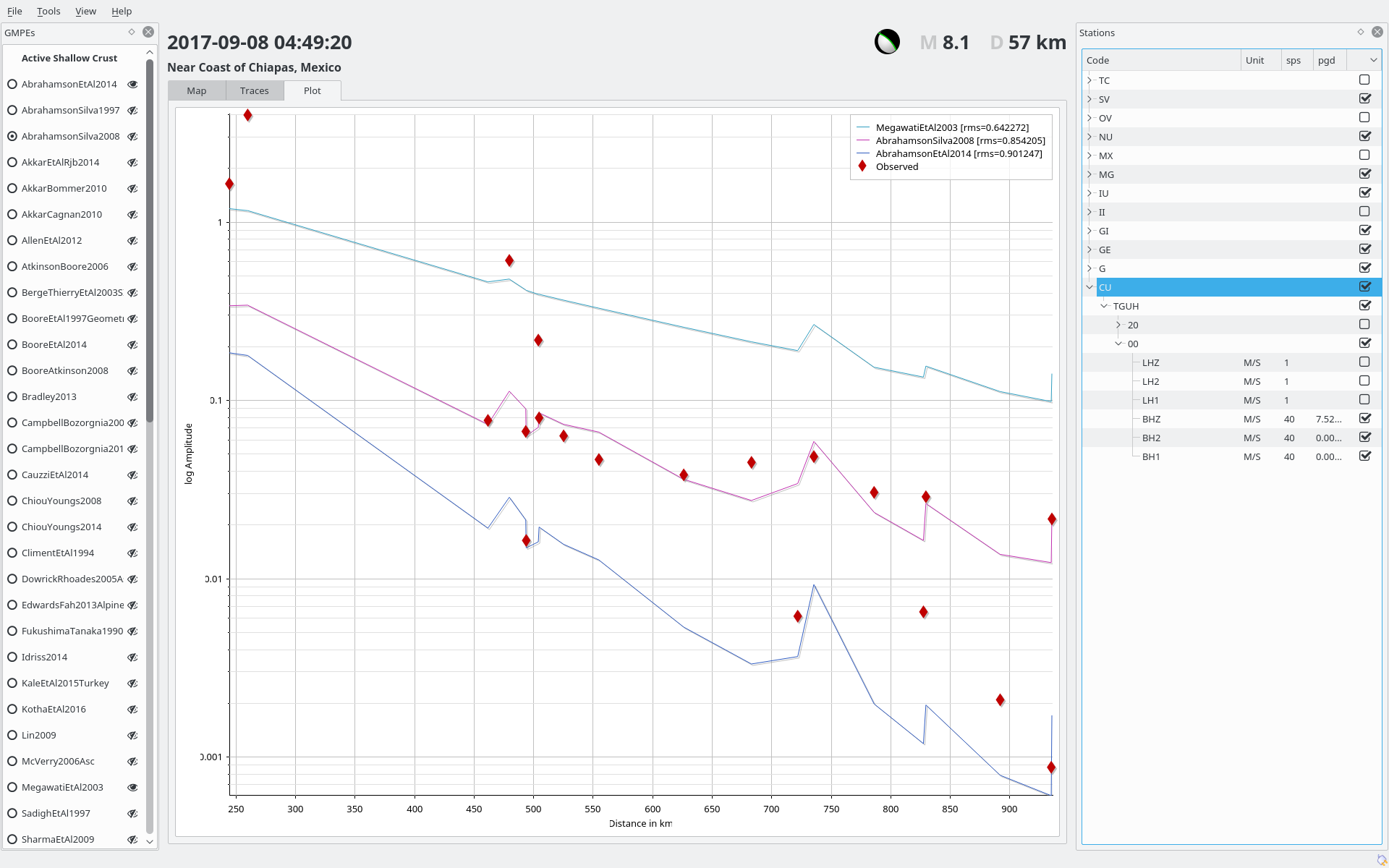

Interactive comparison of GMPEs.

Interactive comparison of GMPEs.

Application

  • Interactive and automatic strong ground motion analysis for earthquakes
  • Map generation for MMI, PGA, PGV
  • Computation of eartquake engineering parameters
  • Comparison, evaluation and selection of Ground Motion Prediction Equations (GMPEs)

Features

  • User friendly and modern interactive graphical interface
  • Semi-automatic and interactive data processing
  • Maps showing intensity (MMI)
  • Maps showing Peak Ground Acceleration (PGA) and Velocity (PGV)
  • RMS of acceleration, velocity and displacement
  • Arias (Ia) and characteristic (Ic) intensities
  • Cumulative absolute velocity (CAV)
  • Specific energy density (SED)
  • Predominant (Tp) and mean (Tm) periods
  • Fourier, power and response spectra
  • Interactive definition of complex rupture geometries
  • Interface to SeisComP3 and FDSN web services for imporing seismic events
  • Handling of internal incidents and export to the SIGMA database
  • Supporting open source C++ and Python plug-ins
  • Interface to OpenQuake hazard library and user-defined python scripts for calculating the ground motion parameters
  • Report generation based on user-defined scripts
  • On-the-fly customization of processing and look and feel parameters.
